TR-2710 EMS 1

telescopic slide

TR - 2710 EMS 1
Units

Single extension telescopic ball bearing slide which supports loads up to 28 kg/61.7 lbs. Perfectly suitable for applications such as kitchen furniture, shopfitting and other light-weight applications.

Specifications

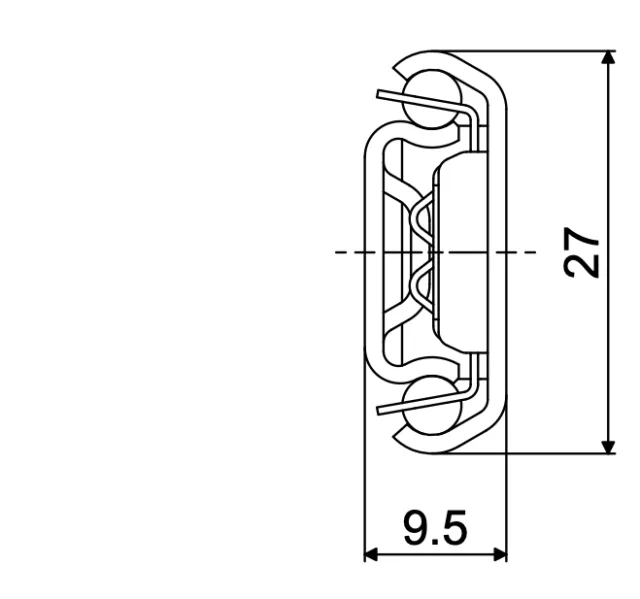

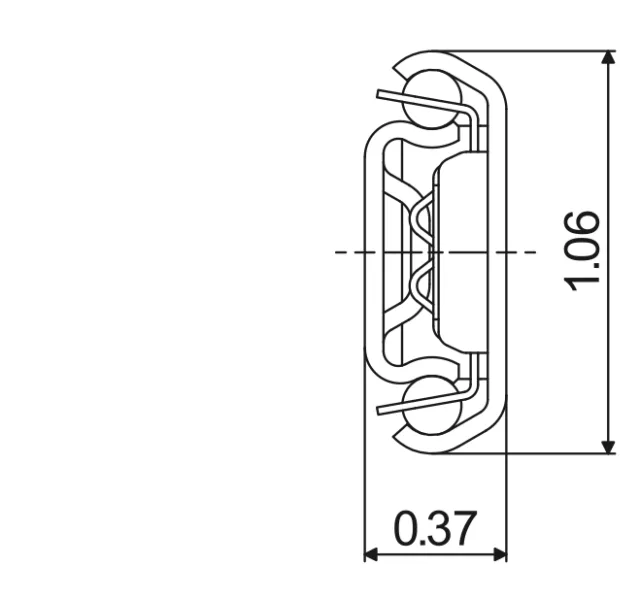

Telescopic slide - Cross section - TR - 2710 EMS 1 Telescopic slide - Cross section - TR - 2710 EMS 1
Load capacity
22 - 28 kg 49 - 62 lbs
Height
27 mm 1.06 in
Width
9.5 mm 0.37 in
Fixation (cabinet side)
Metal
M4 / ISO 7380
Wood
4.0 / DIN 7997
Fixation (drawer side)
Metal
M4 / DIN 965
Wood
3.5 / DIN 7997

Technical information

Article number
Length Length
Travel
Load capacity
Downloads
109042F
300 mm
11.81 in
210 mm
8.27 in
22 kg
49 lbs
109043F
350 mm
13.78 in
240 mm
9.45 in
26 kg
57 lbs
109044F
400 mm
15.75 in
290 mm
11.42 in
26 kg
57 lbs
109046F
500 mm
19.69 in
370 mm
14.57 in
28 kg
62 lbs

More than a product

Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!

Co-creation
Quality
Sustainability
Factory of the Future

fixations

Hole

Holes in a telescopic slide are used to secure the slide to both the mounting surface or the cabinet and the drawer. They provide attachment points for screws or bolts, ensuring that the slide remains firmly in place during operation. Additionally, some holes allow for adjustments in positioning, facilitating precise alignment and smooth movement.

Hole
