This over extension telescopic slide with bumper supports loads up to 129 kg/284 lbs. and is part of our heavy duty slide range. Surface treatment: zinQproteQ for increased corrosion protection.
Specifications

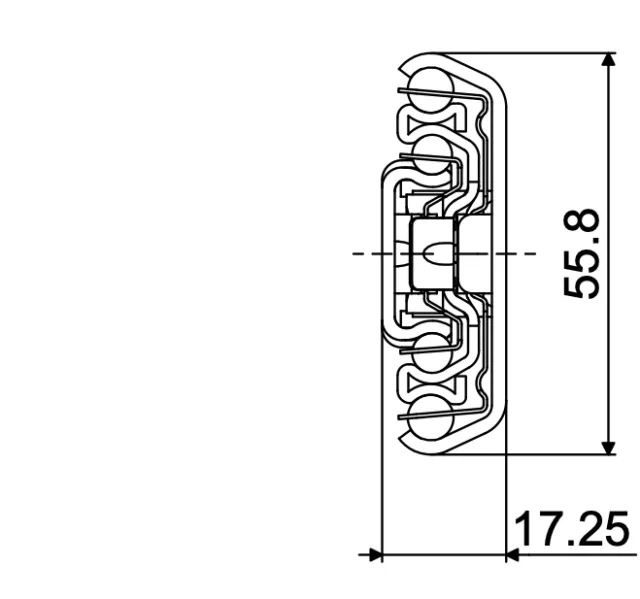

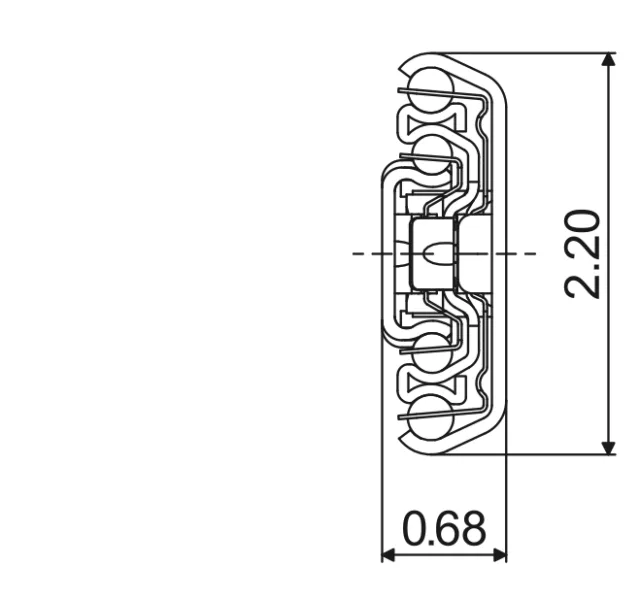

81 - 129 kg 179 - 284 lbs
55.8 mm 2.2 in
17.25 mm 0.68 in
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
Bumper with hold closed
A bumper with hold-closed function of a telescopic slide combines the benefits of dampening with the added feature of keeping the drawer closed. This system has a bumper that not only absorbs impact and reduces noise when the drawer closes but also includes a mechanism that keeps the drawer shut when it’s in the closed position. This feature is ideal for maintaining a tidy and stable appearance while providing added security and durability.
Countersunk holes
Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides
Click bracket (U)
The click bracket is designed for quick and secure attachment without the need for tools. The bracket is rotated into position, ensuring a tight and stable fit. This intuitive turn-and-lock mechanism allows for easy installation, reliable fastening, and simple removal when needed.
