Heavy duty full extension telescopic slide with a load capacity up to 230 kg/507 lbs. combined with a travel of 100%. This type of slide with pull in with fail safe feature is perfectly suitable for heavy loaded storage systems. Surface treatment: zinQproteQ for increased corrosion protection.
Specifications

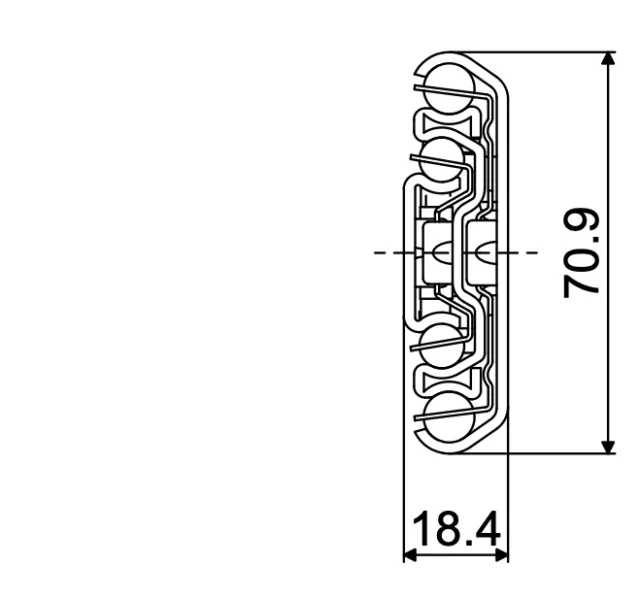

170 - 230 kg 375 - 507 lbs
70.9 mm 2.79 in
18.4 mm 0.72 in
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
Pull-in
A pull-in function of a telescopic slide automatically pulls the drawer fully closed once it is near the closed position. This feature not only enhances the drawer's appearance by keeping it neatly closed but also helps protect the contents inside from dust and damage.
Countersunk holes
Countersunk holes are specialized holes that allow fasteners, like screws or bolts, to remain flat with or below the surface of a the base material of the slide. Countersunk holes are used to prevent contact between fasteners and moving parts within our slides
Click bracket (T)
The click bracket is designed for quick and secure attachment without the need for tools. The bracket is rotated into position, ensuring a tight and stable fit. This intuitive turn-and-lock mechanism allows for easy installation, reliable fastening, and simple removal when needed.
