Full extension telescopic ball bearing drawer slide with closing bumper and trigger release disconnect feature. This type of slide supports loads up to 25 kg/55.1 lbs. and can be used for small retail displays, storage systems and other furniture related applications.
Specifications
20 - 25 kg 44 - 55 lbs

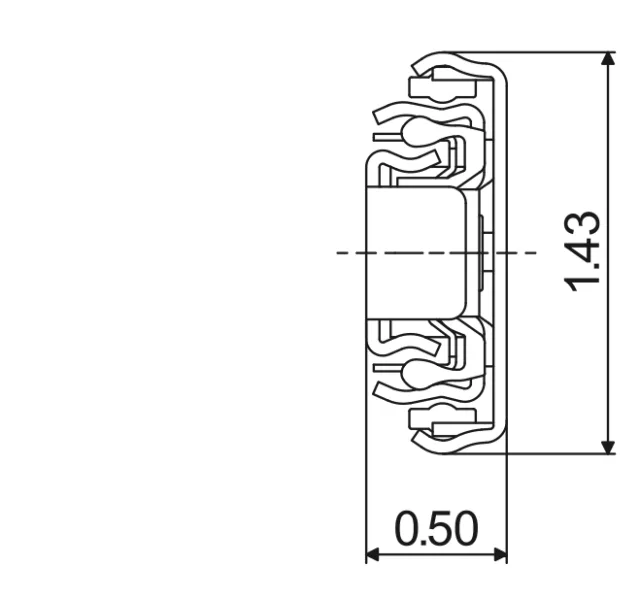

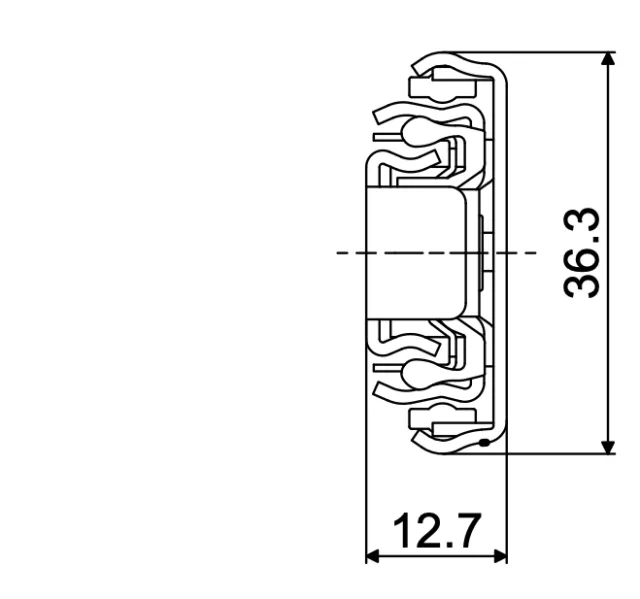

36.3 mm 1.43 in
12.7 mm 0.5 in
metric_Datasheet_13636Sxx
Technical information
More than a product
Our approach complements our products. Partner with us, and you'll find a reliable teamplayer who works alongside you, thinking with you every step of the way!
Bumper with hold closed
A bumper with hold-closed function of a telescopic slide combines the benefits of dampening with the added feature of keeping the drawer closed. This system has a bumper that not only absorbs impact and reduces noise when the drawer closes but also includes a mechanism that keeps the drawer shut when it’s in the closed position. This feature is ideal for maintaining a tidy and stable appearance while providing added security and durability.
Disconnect
A disconnect function in telescopic slides allows the drawer to be easily separated from its track, enabling quick and effortless removal or maintenance. This feature simplifies installation, enhances accessibility for cleaning or repairs, and reduces downtime in several applications. Additionally, it improves safety by allowing the user to disengage the slide without complex tools, and supports greater flexibility.
Hole
Holes in a telescopic slide are used to secure the slide to both the mounting surface or the cabinet and the drawer. They provide attachment points for screws or bolts, ensuring that the slide remains firmly in place during operation. Additionally, some holes allow for adjustments in positioning, facilitating precise alignment and smooth movement.
